UD fabric made as 90 degree direction. The majority rovings run in one direction only. Suitbale for GRP high pressure

Place of Origin CHINA
Certification ISO 9000
Model Number ET227-200mm
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details It is wound onto a paper tube of ID 76mm, wrapped up with plastic film and packed in woven bag. 48 rolls packed in one pallet, and a 20' container can hold 20 pallets
Delivery Time 8 DAYS
Payment Terms T/T, L/C
Supply Ability 40MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Non-metallic Product E Glass Direct Roving Color White
Yarn Type E Glass Width 200mm
Texture 90° Degree Direction Weft
Usage High Pressure GRP Pipe For Petrol
Leave a Message
Product Description

UD fabric made as 90 degree direction. The majority rovings run in one direction only. Suitbale for GRP pipeline of high pressure, such as petrol and water.

Fiberglass unidirectional fabric is the main arrangements of the roving 90º (transverse) or 0º (longitudinal), and stitched with a coil structure. It can be used to stitch unidirectional layer yarn with chopped strand mat, polyester veil, fiberglass surface tissue, carbon felt etc. into various types of composites fabric to obtain specific performances.



Features:

No binder content, good wet out of resin

Provide mechanical strength of a single direction

Fiber straight arrangement, max usage of fiber strength

Interspaces between the fibers are small, effectively improve the impact resistance of products



Application:

Compatible with reinforced unsaturated polyester resin, vinlyester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes winding, pultrusion, RTM, hand lay-up,vacuum infusion molding and RTM etc.

The typical end-use applications are pipe, storage tank, pultruded profile,  FRP boat hull and wind power blade etc.

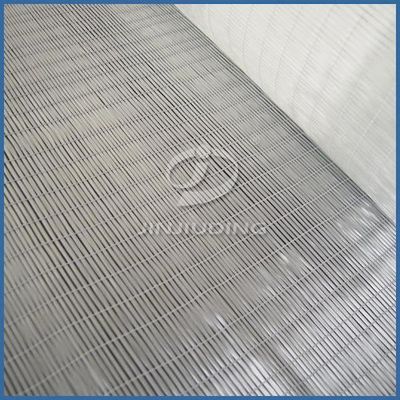

UD fabric made as 90 degree direction. The majority rovings run in one direction only. Suitbale for GRP high pressure 0





Specifications:



Product NO.



Overall Weight

(g/m2)



0°Roving

(g/m2)



90°Roving

(g/m2)



Chopped Roving

(g/m2)



Polyester Felt(g/m2)



Width

(mm)

ET 227 227 / 227 / / 150 - 2600
ET 350 350 / 350 / / 150 - 2600
ET 430 430 / 430 / / 150 - 2600
ET 550 550 / 550 / / 150 - 2600
ETP 400 400 / 360 / 40 150 - 2600
ETM 450 450 / 230 220 / 150 - 2600
ETM 650 650 / 430 220 / 150 - 2600
ETM 900 900 / 680 220 / 150 - 2600
ETMP 500 500 / 240 220 40 150 - 2600
EL 400 400 336 64 / / 150 - 2600
EL 800 800 672 128 / / 150 - 2600
ELM 550 550 336 / 224 / 150 - 2600
ELM 900 900 672 / 228 / 150 - 2600
ELMP 600 600 336 / 224 40 150 - 2600
