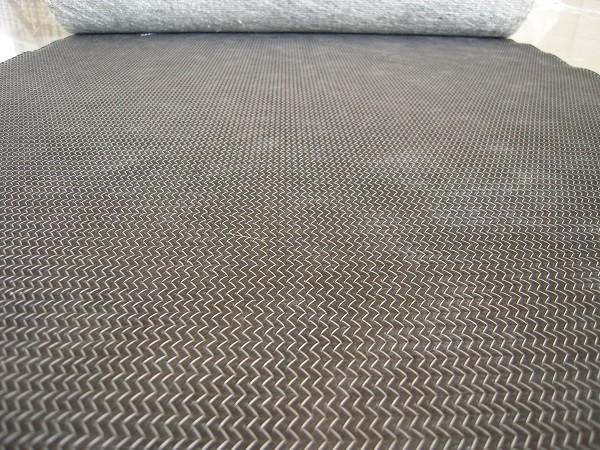

Unsaturated Resin Fiberglass Surface Mat 3200mm 320g 330g 480g Carbon Fiber Veil
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMK400/C20 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The mat is wrapped in plastic film and put in a woven bag. It is either in bulk or loaded in pallet at delivery. 16 rolls a pallet, 10 pallets for a |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Product Details
| Material | Fiberglass Chopped Strand Mat And Carbon Fiber Veil | Color | Black And White |
|---|---|---|---|
| Width | 150-3200mm | Character | High Tensile And Smooth Surface |
| Weight | 330g-480g | Combine Type | Stitch Knitted |
| Resin Type | Unsaturated Resin And Other Type | Application | Wide Usages In FRP Industry |
| Highlight | Unsaturated Resin 330g carbon fiber matt,Fiberglass Surface Mat 3200mm 320g,330g 480g Carbon fiber veil |
||
Product Description
HIgh tensile strength light weight combo mat, CSM and carbon fiber mat 320g/ 400g, compatiable with all types of resin
Introduction:
Carbon fiber stitching combo mat is to take carbon fiber mat as the base layer, and its above is not evenly spread glass fiber short-cut, and then coil structured them.
Specifications:
|
Product NO. |
Overall Weight (g/m2) |
Chopped Roving (g/m2) |
Fiberglass Surface Mat (g/m2) |
Width (mm) |
| EMKS 330 | 330 | 300 | 30 | 150 - 3200 |
| EMKS 430 | 430 | 400 | 30 | 150 - 3200 |
| EMKS 350 | 350 | 300 | 50 | 150 - 3200 |
| EMKS 450 | 450 | 400 | 50 | 150 - 3200 |
| EMKS 380 | 380 | 300 | 80 | 150 - 3200 |
| EMKS 480 | 480 | 400 | 80 | 150 - 3200 |
Features:
● Carbon fiber veil can make the surface of the product with conductive property.
● Good designablity, thickness of the fiber layer is optional.
● Solve the problems of easy break, wrinkle and other symptoms when the carbon mat is separately moulding.
Application:
● Compatiable with reinforced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes pultrusions, winding, hand lay-up etc.
● They typical end-use applications are anode tube or panel for wet dust collector.
