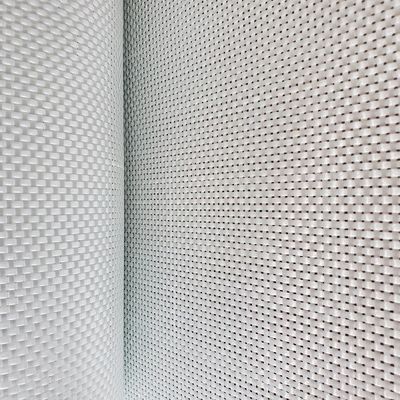

350g W30 Inch L200 Inch Fiberglass Woven Roving Roll For Filament Winding Pipe
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EWR600-3200 |
| Minimum Order Quantity | 500KGS |
| Packaging Details | Each roll is wrapped in plastic film, and plastic bag packed outside, 16 roll a pallet and 10 pallets a 20' FCL |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 30 MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | E Glass Fiberglass | Color | White |
|---|---|---|---|
| Texture | Plain Weave | Width | 300-1270mm |
| Weight | 300g-800g | Application | Boat Hull And Hand Lay-up GRP |
| High Light | 30 inch Fiberglass Woven Roving,350g Fiberglass Woven Roving,200 inch woven fiberglass roll |
||
Product Description
made of E fiberglass, with plain weave of glass roving. Can be used in filament winding pipe, storage tank etc.
Introduciton:
C glass and E glass woven roving (200g-800g). Woven roving is a bidirectional fabric made by interweaving roving in plain weave pattern. The construction impants to the fabric and excellent dimensional stability during handling. The fiberglass woven roving is elementary material of GRP with reinforcement, corrosion-resistance and insulation, widely used in apparatus instrument, radio, boat shells, tub-shower units, automotive parts and hand lay-up GRP products.
Specification:
| Specification | Tex | Unit Weight (g/m²) | Breaking Strength (N≥) | Texture | ||
| Warp | Weft | Warp | Weft | |||
| EWR300 | 300 | 380 | 300±15 | 1800 | 1700 | Plain Weave |
| EWR400 | 576 | 576 | 400±120 | 2500 | 2200 | |
| EWR500 | 900 | 900 | 500±25 | 3000 | 2750 | |
| EWR600 | 1200 | 1200 | 600±30 | 4000 | 3850 | |
| EWR800 | 2400 | 2400 | 800±40 | 4600 | 4400 | |
