EMK400+P40: Polyester Veil Stitched Combo Mat ISO 9000 for pultrusion, RTM and continuous plate forming process
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMK40+P40 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Non-metallic Product | 2 Layers Of Polyester Veil And Stitch-knitted Mat | Color | White |
|---|---|---|---|
| Width | 150mm | Combo Type | Stitched Or Bond |
| High Light | EMK400 stitched combo mat,polyester veil stitched combo mat,ISO 9000 E glass chopped strand mat |
||
Product Description
Introduction:

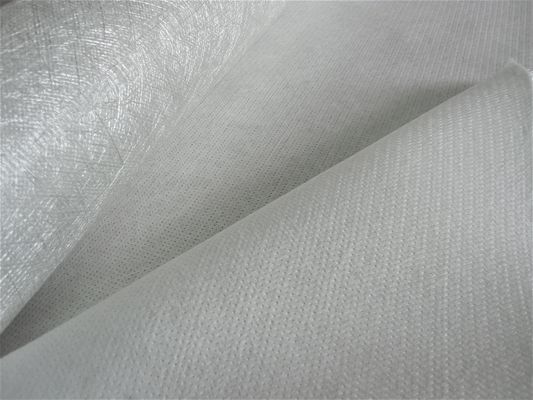

Polyester combo mat is a fiber mat composed of a polyester surface felt as a base layer, covered with a glass fiber mat (with stitched felt, chopped strand mat, etc.) and compounded by a polyester coil stitching or adhesive bonding process.
Features:
● Solve the problems of easy break, wrinkle and other symptoms when the polyester veil is separately moulding
● Effcientively improve the appearance of products, improve the resin content of the surface to the products
● Enhance the weatherability of products with UV-resistant surface
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes pultrusion, RTM, continuous plate process etc.
● The typical end-use applications are PU pultruded profile, antenna radome, cable tray, panel etc.
Specifications:
|
Product NO. |
Overall Weight (g/m2) |
Polyester Felt (g/m2) |
Stitched Mat (g/m2) |
Chopped Mat (g/m2) |
Width (mm) |
Composite Process |
| EMKP 240 | 240 | 40 | 200 | / | 150 - 3200 | stitched |
| EMKP 340 | 340 | 40 | 300 | / | 150 - 3200 | stitched |
| EMKP 240B | 240 | 40 | 200 | / | 150 - 3200 | bond |
| EMKP 340B | 340 | 40 | 300 | / | 150 - 3200 | bond |
| EMCP 240 | 240 | 40 | / | 200 | 150 - 3200 | bond |
| EMCP 340 | 340 | 40 | / | 300 | 150 - 3200 | bond |
