2600mm Polyester CSM 300 Fibreglass Surface Tissue Multi Resin For Pultrusion

Place of Origin CHINA
Certification ISO 9000
Model Number EMK400-1200
Minimum Order Quantity 500kgs
Price negotiatable

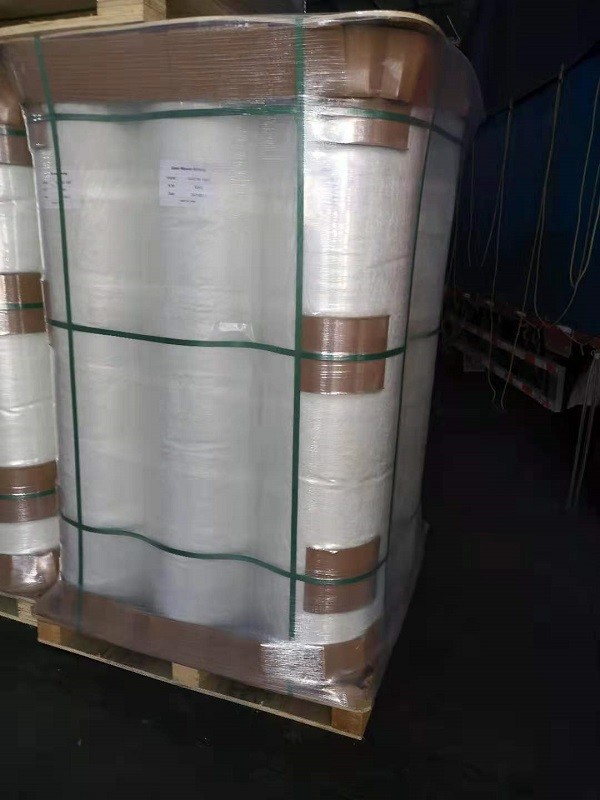

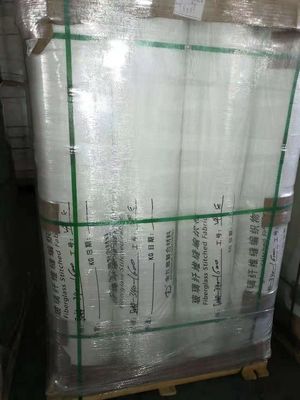

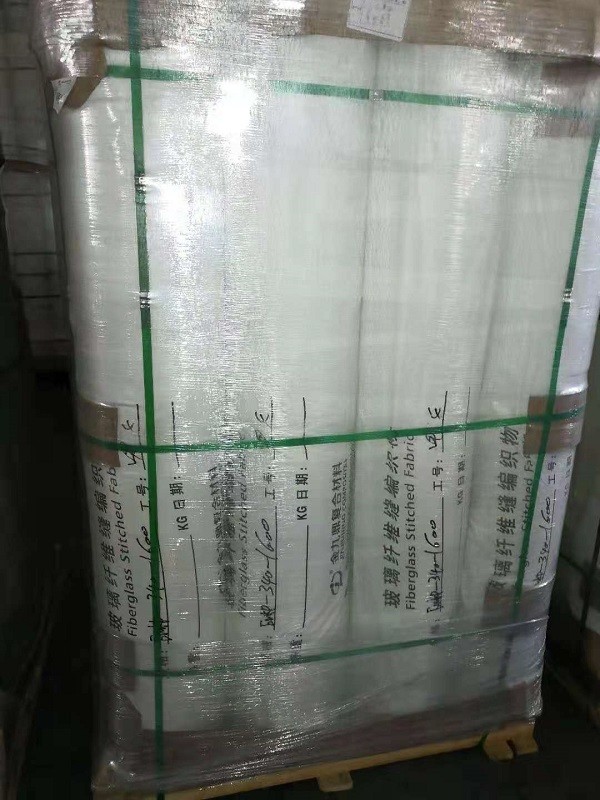

Packaging Details The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Non-metallic Product Polyester Veil And Chopped Strand Mat Color White
Width 150-3200mm Combo Type Stitched Or Bond
High Light

2600mm fibreglass surface tissue

,

polyester fibreglass surface tissue

,

multi resin csm 300 fiberglass

Leave a Message
Product Description

polyester veil stitched combo mat with high tensile strength comptatiable with all types of resin used in pultrusion FRP

Introduction:

Polyester combo mat is a fiber mat composed of a polyester surface felt as a base layer, covered with a glass fiber mat (with stitched felt, chopped strand mat, etc.) and compounded by a polyester coil stitching or adhesive bonding process.



Features:

Solve the problems of easy break, wrinkle and other symptoms when the polyester veil is separately moulding

Effcientively improve the appearance of products, improve the resin content of the surface to the products

Enhance the weatherability of products with UV-resistant surface



Application:

Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes pultrusion, RTM, continuous plate process etc.

The typical end-use applications are PU pultruded profile, antenna radome, cable tray, panel etc.



Specifications:

Product NO.

Overall Weight

(g/m2)

Polyester Felt

(g/m2)

Stitched Mat

(g/m2)

Chopped Mat

(g/m2)

Width

(mm)

Composite Process

EMKP 240 240 40 200 / 150 - 3200 stitched
EMKP 340 340 40 300 / 150 - 3200 stitched
EMKP 240B 240 40 200 / 150 - 3200 bond
EMKP 340B 340 40 300 / 150 - 3200 bond
EMCP 240 240 40 / 200 150 - 3200 bond
EMCP 340 340 40 / 300 150 - 3200 bond
