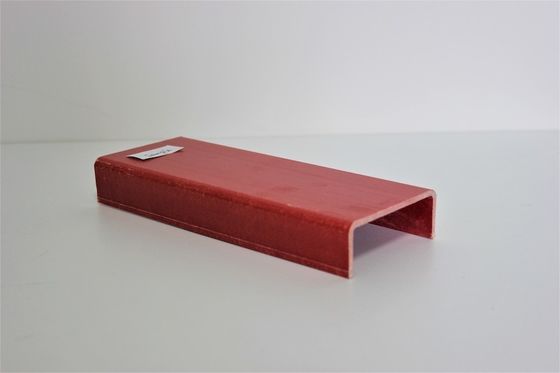

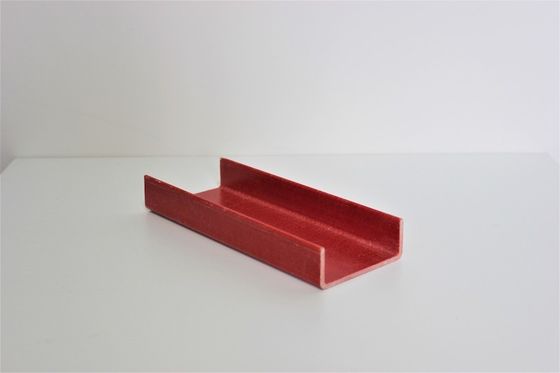

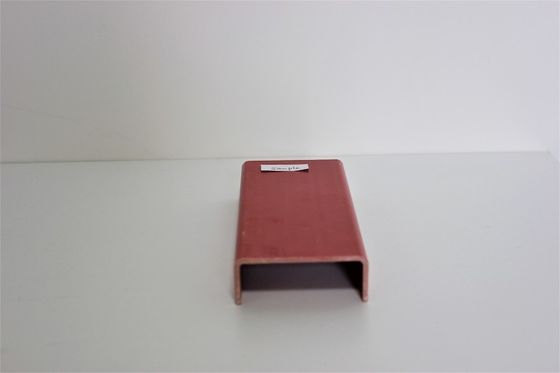

Pultruded Anti Corrosion Fiberglass U Channels 1.8g/Cm3 To 2.0g/Cm3 Density
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | FRP channel with polyester veil surface |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | usually packed in pallet and the quantity of a container depends on the measure and shape of the profile. All the size could be customer made. |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 10 MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Non-metallic Material | FRP Profile By Pultrusion | Color | Customizable |
|---|---|---|---|
| Dimension | Customizable | Density | 1.8g/cm3~2.0g/cm3 |
| Character | Anti Corrosion And Aging-resistant, Etc. | Application | Windows And Door |
| High Light | fiberglass u channel 1.8g/cm3,pultruded fiberglass u channels,Anti corrosion fiberglass channel beam |
||
Product Description
FRP channel by pultrusion process with light weight high,tensile strength and smooth surface and wearing-resistance
Introduction:
FRP profiles are high strength composite that comprises the reinforced material, thermosetting resin matrix (polyester, VE,, phenolic, epoxy, etc) and glass fiber (in the form of roving, mat, fabric etc.) supplementary curing agent and addictives, and cures to the desired shape through a certain process.
Features:
Pultruded FRP profiles possess the features of light weight, high strength, corrosion resistance, electric insulation, anti-aging, nonmagnetic, easy processing and bright color, able to meet the properties demands of different fields and surroundings, and are widely used in infrastructure, chemical perservation, electric electronics, sewage treatment, transportation and recreation.
Pultruded FRP profiles include H/I beam, angle, C/U channel, round tube, square tube, flat bar and rod etc standard profile and specially desgined customized profile.
Specifiaction
| Product | Dimension WxHxT (mm) | Weight (kg/m) | |
|
|
40x22x5 | 0.69 | |
| 50x32x3.2 | 0.64 | ||
| 60x40x5 | 1.2 | ||
| 70x30x5 | 1.05 | ||
| 89x38x4.7 | 1.35 | ||
| 89x38x6.3 | 1.78 | ||
| 100x5x6 | 2.08 | ||
| 101x29x6.3 | 1.64 | ||
| 112x46x5 | 1.79 | ||
| 112x50x6 | 2.48 | ||
| 120x41x4.5 | 1.61 |
