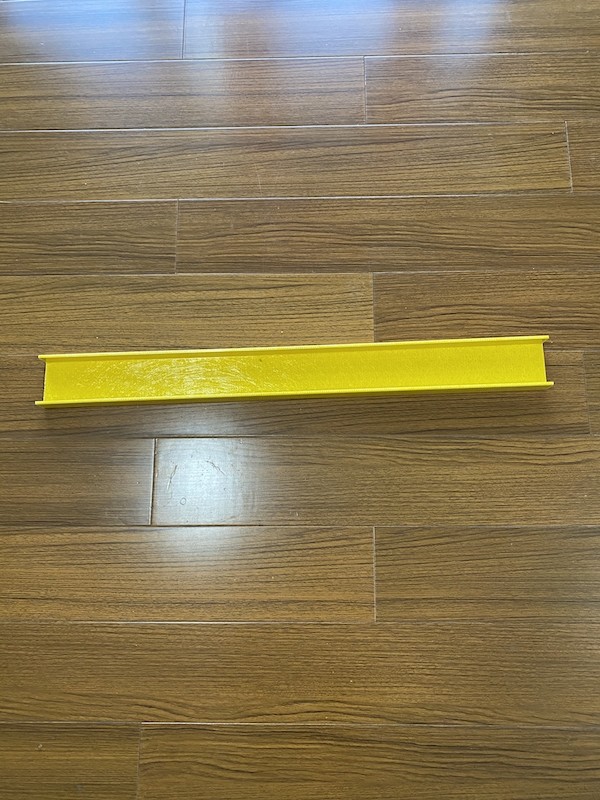

High Strength FRP U Channel Beam 1000mm Length Electric Insulation

Place of Origin CHINA
Certification ISO 9000
Model Number FRP yellow channel of 1000mm length
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details usually packed in pallet and the quantity of a container depends on the measure and shape of the profile. All the size could be customer made.
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 10 MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Non-metallic Material FRP Profile By Pultrusion Color Ordered By Customer
Dimension Ordered By Customer Resin Unsaturated Polyester Resin
Character Light Weight And Aging-resistant, Etc. Application Infrastructure And Transportation, Etc.
High Light

high strength FRP U Channel

,

electric insulation FRP U Channel

,

U shaped frp beam

Leave a Message
Product Description

FRP channel by pultrusion process with light weight high,tensile strength and smooth surface and wearing-resistance

Introduction:

FRP profiles are high strength composite that comprises the reinforced material, thermosetting resin matrix (polyester, VE,, phenolic, epoxy, etc) and glass fiber (in the form of roving, mat, fabric etc.) supplementary curing agent and addictives, and cures to the desired shape through a certain process.



Features:

Pultruded FRP profiles possess the features of light weight, high strength, corrosion resistance, electric insulation, anti-aging, nonmagnetic, easy processing and bright color, able to meet the properties demands of different fields and surroundings, and are widely used in infrastructure, chemical perservation, electric electronics, sewage treatment, transportation and recreation.





Pultruded FRP profiles include H/I beam, angle, C/U channel, round tube, square tube, flat bar and rod etc standard profile and specially desgined customized profile.



Specifiaction

Product Dimension WxHxT (mm) Weight (kg/m)



CHANNEL
40x22x5 0.69
50x32x3.2 0.64
60x40x5 1.2
70x30x5 1.05
89x38x4.7 1.35
89x38x6.3 1.78
100x5x6 2.08
101x29x6.3 1.64
112x46x5 1.79
112x50x6 2.48
120x41x4.5 1.61
