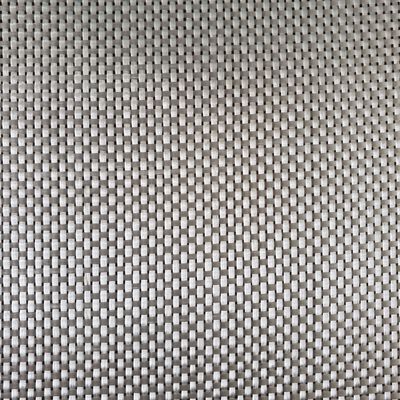

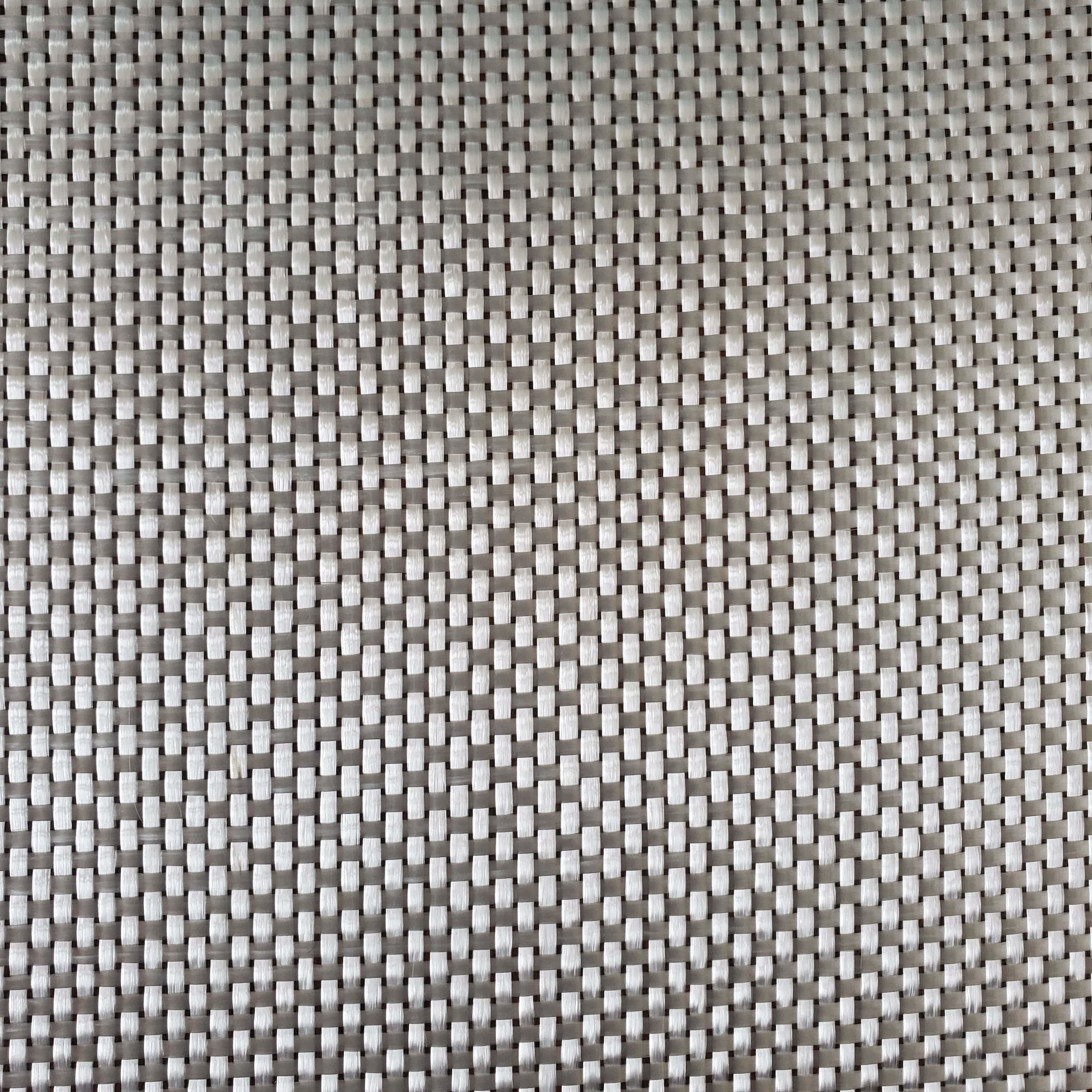

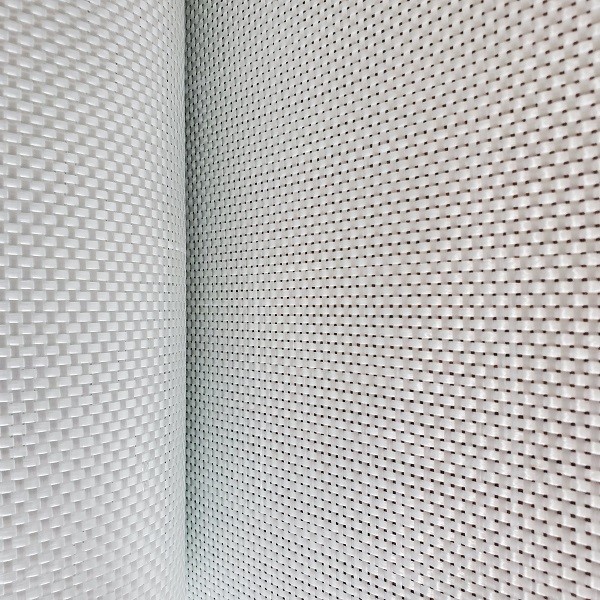

Plain Weave C Glass Fiberglass Woven Matting 600gsm 670mm Width
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EWR600-670 |
| Minimum Order Quantity | 500KGS |
| Packaging Details | Each roll is wrapped in plastic film, and plastic bag packed outside, 16 roll a pallet and 10 pallets a 20' FCL |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 30 MT A WEEK |
Product Details
| Material | C Glass Fiberglass | Color | White |
|---|---|---|---|
| Texture | Plain Weave | Width | 670mm |
| Weight | 600gsm | Application | Boat Hull And Hand Lay-up GRP |
| Highlight | 600gsm fibreglass woven matting,Plain weave c glass fiberglass,670mm fibreglass woven matting |
||
Product Description
made of E fiberglass, with plain weave of glass roving. Can be used in filament winding pipe, storage tank etc.
Introduciton:
C glass and E glass woven roving (200g-800g). Woven roving is a bidirectional fabric made by interweaving roving in plain weave pattern. The construction impants to the fabric and excellent dimensional stability during handling. The fiberglass woven roving is elementary material of GRP with reinforcement, corrosion-resistance and insulation, widely used in apparatus instrument, radio, boat shells, tub-shower units, automotive parts and hand lay-up GRP products.
Specification:
| Specification | Tex | Unit Weight (g/m²) | Breaking Strength (N≥) | Texture | ||
| Warp | Weft | Warp | Weft | |||
| EWR300 | 300 | 380 | 300±15 | 1800 | 1700 | Plain Weave |
| EWR400 | 576 | 576 | 400±120 | 2500 | 2200 | |
| EWR500 | 900 | 900 | 500±25 | 3000 | 2750 | |
| EWR600 | 1200 | 1200 | 600±30 | 4000 | 3850 | |
| EWR800 | 2400 | 2400 | 800±40 | 4600 | 4400 | |
