Stitch Fiberglass Combo Mat Gsm 300 Adding 30g Surface Tissue For Cooling Tower
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMK300-80 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | C Glass And E Glass Fiber | Width | ≤3200 |
|---|---|---|---|
| Weight | 270g+30g | Character | No Binder And Easy Wet-out |
| Color | White | Application | Cooling Tower |
| High Light | Fiberglass Stitched Combo Mat,Gsm 300 Fiberglass Combo Mat,Cooling Tower Fiberglass Combo Mat |
||
Product Description

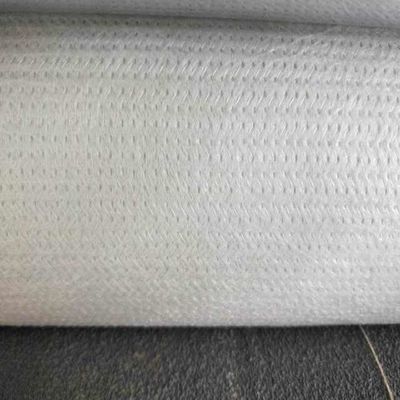

High Quality Glass Fiber Stitch Combo Gsm 300 Adding 30g Surface Tissue For Cooling Tower
It is made of 30g/m2 surface tissue as the base layer, above then non-uniform glass fiber short-cut of a mat of 270g/2 with nylon thread knitted together. It can be used for FRP cooling tower.
Advantages
1. Quickly wet out(resin), good molding property, easy to delete air bubbles.
2. Evenly distribution of fiber and blinder.
3. The composite products have high dry and wet tensile strength and good transparency.
4. Uniform density ensure consistent fiberglass content and mechanical properties of the composite products.
Specification
| Product NO. |
Overall Weight (g/m2) |
Chopped Roving (g/m2) |
Fiberglass Surface Mat (g/m2) |
Width (mm) |
| EMKS 330 | 330 | 300 | 30 | 150 - 3200 |
| EMKS 430 | 430 | 400 | 30 | 150 - 3200 |
| EMKS 350 | 350 | 300 | 50 | 150 - 3200 |
| EMKS 450 | 450 | 400 | 50 | 150 - 3200 |
| EMKS 380 | 380 | 300 | 80 | 150 - 3200 |
| EMKS 480 | 480 | 400 | 80 | 150 - 3200 |
Features:
● No binder and good resin wet out performance
● Good strand dispersion and felt of uniform thickness
● Good moldability and easy roll-out
● Stitched together with polyester thread resulting in high wet tensile strength
Application:
● Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.
● The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
