E Glass Fiberglass Combo Mat ISO Fiberglass Woven Fabric Combo Mat
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMK300+S30 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | E Glass Surface Veil And Stitch Mat | Color | White |
|---|---|---|---|
| Width | 1600mm | Character | Easy Wet-out And Smooth Surface For FRP Product |
| Resin Type | Unsaturated Resin And Other Type | Application | Auto Housing |
| Specification | 330 | ||
| High Light | E glass Fiberglass Combo Mat,auto housing Fiberglass Combo Mat,ISO fiberglass woven fabric combo mat |
||
Product Description

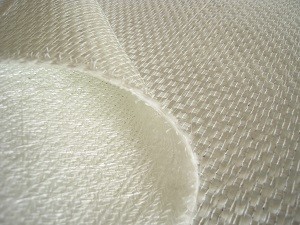

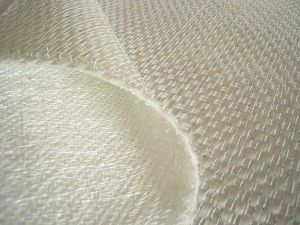

Stitch combo mat is a complex mat made by stitching together a layer of rovings consisting of parallel aligned rovings(0,90) and a layer of evenly distributed chopped strands.
Its features:
- Solve the problems of easy break, wrinkle and other symptoms when the polyester veil is separately moulding
- Reduce the workload of laying, improve production efficiency.
- Fiberglass surface mat absorbs resin fast, the product surface is smooth.
Application:
- Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
- Forming process includes pultrusion, RTM, continuous plate process etc.
- The typical end-use applications are PU pultruded profile, antenna radome, cable tray, panel etc.
Specifications:
|
Product NO. |
Overall Weight (g/m2) |
Chopped Roving (g/m2) |
Fiberglass Surface Mat (g/m2) |
Width (mm) |
| EMKS 330 | 330 | 300 | 30 | 150 - 3200 |
| EMKS 430 | 430 | 400 | 30 | 150 - 3200 |
| EMKS 350 | 350 | 300 | 50 | 150 - 3200 |
| EMKS 450 | 450 | 400 | 50 | 150 - 3200 |
| EMKS 380 | 380 | 300 | 80 | 150 - 3200 |
| EMKS 480 | 480 | 400 | 80 | 150 - 3200 |
