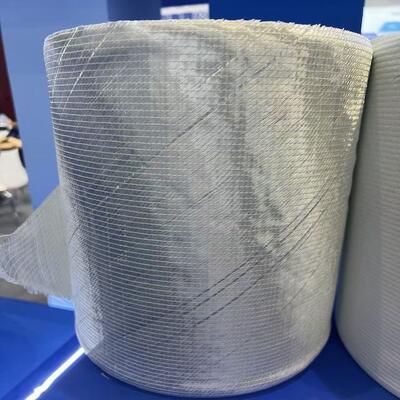

Fiberglass Triaxial Fabric +45°/90°/-45° for Pultrusion Profile to enhance the Strength of profile from Three directions
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000:12000 |
| Model Number | ETTX450-1270mm |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Product Details
| Material | Fiberglass | Color | White |
|---|---|---|---|
| Texture | +45º/90º/- 45º/ | Width | 1270mm |
| Resin | Unsaturated Resin And Other Type | Application | FRP Pultrusion |
| Weight | 450g |
Product Description
Product Overview
Our fiberglass triaxial fabric (+45°/90°/-45°) is a professional non-crimp stitched reinforcement material made of continuous E-glass direct rovings. Different from conventional biaxial fabrics, it features a unique three-directional fiber laying structure of +45°, 90° and -45°, perfectly customized for glass fiber pultrusion process. With precise fiber arrangement and stable stitching structure, this fabric eliminates fiber distortion, ensures uniform resin penetration, and greatly enhances the comprehensive mechanical properties of pultruded FRP products.
Specifications:
| Product No. | Overall weight (g/m²) | 0° roving (g/m²) | 45° roving (g/m²) | 90°roving (g/m²) | -45° roving (g/m²) | Chopped roving (g/m²) | Polyester veil (g/m²) | Width (mm) |
| EBX450 | 450 | / | 225 | / | 225 | / | / | 150~2540 |
| EBX600 | 600 | / | 300 | / | 300 | / | / | 150~2540 |
| EBX800 | 800 | / | 400 | / | 400 | / | / | 150~2540 |
| EBXM825 | 825 | / | 300 | / | 300 | 225 | / | 150~2540 |
| ETTX450 | 450 | / | 150 | 150 | 150 | / | / | 150~2540 |
| ETTX750 | 800 | / | 270 | 260 | 270 | / | / | 150~2540 |
| ETTX450P40 | 490 | / | 150 | 150 | 150 | / | 40 | 150~2540 |
| ETLX750 | 750 | 283 | 233 | / | 233 | / | / | 150~2540 |
| EQX800 | 800 | 212 | 200 | 200 | 200 | / | / | 150~2540 |
| EQX1200 | 1200 | 283 | 300 | 310 | 300 | / | / | 150~2540 |
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of the product i multi direction
● Fiber straight arrangemet, max. usage of fiber strength
● The fabric's surface is flat, with good quality of finished products' outlook
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
