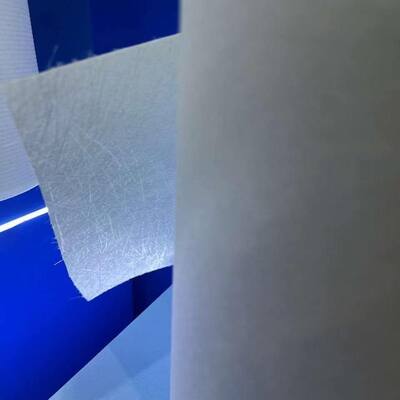

45mm Width Polyester Combo Mat and Fiberglass Chopped Strand Composite Mat for PV Frame Pultrusion with High Tensile Strength
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMKP240 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T,L/C |
| Supply Ability | 20MT A WEEK |
Product Details
| Material | Fiberglass Chopped Strand Mat With Polyester Veil | Color | White |
|---|---|---|---|
| Width | 1500mm | Character | Very Smooth Surface |
| Resin Type | Unsaturated Resin And Other Type | Application | PV Frame Pultrusion |
| Highlight | 45mm Width Polyester Combo Mat,PV Frame Pultrusion Fiberglass Chopped Strand Composite Mat,High Tensile Strength Polyester Combo Mat |
||
Product Description
Key Benefits
- Greatly improves surface smoothness of FRP finished goods
- All-in-one composite design simplifies pultrusion processing
- Minimizes fiber print-through for high-grade surface appearance
- Widely used for mass-produced FRP solar photovoltaic frames
- Good compatibility with polyester and vinyl-ester resin systems
Product Features
- Solves the problems of easy break, wrinkle, and other symptoms when the polyester veil is separately moulded
- Reduces the workload of laying and improves production efficiency
- Fiberglass surface mat absorbs resin quickly, resulting in a smooth product surface
Applications
- Compatible with reinforced unsaturated polyester resin, vinyl ester resin, epoxy resin, phenolic resin, and polyurethane resin
- Forming processes include pultrusion, RTM, continuous plate process, and more
- Typical end-use applications include PU pultruded profiles, antenna radomes, cable trays, panels, and more
Specifications
| Product No. | Overall Weight (g/m²) | Chopped Roving (g/m²) | Fiberglass Surface Mat (g/m²) | Width (mm) |
|---|---|---|---|---|
| EMKS 330 | 330 | 300 | 30 | 150 – 3200 |
| EMKS 430 | 430 | 400 | 30 | 150 – 3200 |
| EMKS 350 | 350 | 300 | 50 | 150 – 3200 |
| EMKS 450 | 450 | 400 | 50 | 150 – 3200 |
| EMKS 380 | 380 | 300 | 80 | 150 – 3200 |
| EMKS 480 | 480 | 400 | 80 | 150 – 3200 |
