1200gsm Fiberglass Biaxial Fabric E Glass Chopped For Sports Equipment
Place of Origin | CHINA |
---|---|
Certification | ISO 9000 |
Model Number | ELT1200 |
Minimum Order Quantity | 500kgs |
Price | negotiatable |
Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
Delivery Time | 7 DAYS |
Payment Terms | T/T, L/C |
Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | E Glass Chopped Strand Mat And Polyester Veil, 0º Or 90º Roving | Color | White |
---|---|---|---|
Texture | 0°C And 90° Combination | Width | 150-2600mm |
Resin | Unsaturated Resin And Other Type | Application | Molding, RTM Etc. |
High Light | 1200gsm Fiberglass Biaxial Fabric,Fiberglass Biaxial Fabric E Glass Chopped,E glass chopped fiberglass cloth roll |
Fiberglass biaxial fabric with high tensile strength comptatiable with all types of resin used in sports equipment
Introduction:

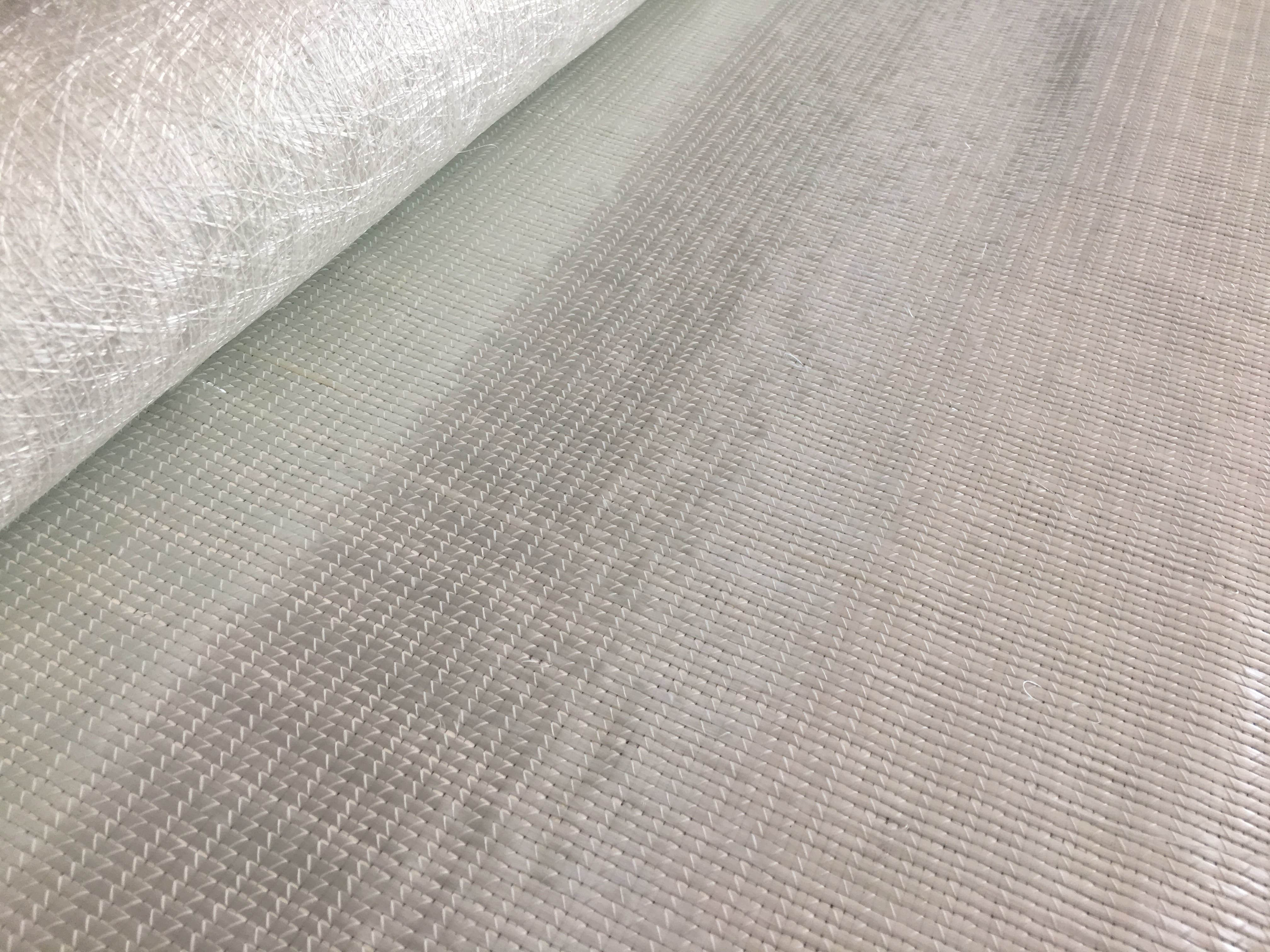

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of composites fabric to obtain specific performance.
Specifications:
Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt (g/m2) |
Width (mm) |
ELT 450 | 450 | 250 | 200 | / | / | 150 - 2600 |
ELT 600 | 600 | 336 | 264 | / | / | 150 - 2600 |
ELT 800 | 800 | 420 | 380 | / | / | 150 - 2600 |
ELTP 500 | 500 | 250 | 210 | / | 40 | 150 - 2600 |
ELTM 600 | 600 | 250 | 200 | 150 | / | 150 - 2600 |
ELTM 900 | 900 | 336 | 364 | 200 | / | 150 - 2600 |
ELTM 1050 | 1050 | 336 | 414 | 300 | / | 150 - 2600 |
ELTM 1200 | 1200 | 420 | 430 | 350 | / | 150 - 2600 |
ELTMP 640 | 640 | 250 | 200 | 150 | 40 | 150 - 2600 |
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of the product i multi direction
● Fiber straight arrangemet, max. usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
