FRP Pipe E Glass Material 380g/M2 266mm Width For Filament Winding Process

Place of Origin CHINA
Certification ISO 9000
Model Number EMK380
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Slip And Age Resistant Material E Glass
Width 266mm Roving Type Chopped Strands Of 2400tex
Softness Middle Resin Unsaturated Resin And Other Type
Application FRP Filament Winding
High Light

FRP Pipe E Glass Material 266mm

,

380g/M2 E Glass Material

,

Filament Winding Process E Glass

Leave a Message
Product Description

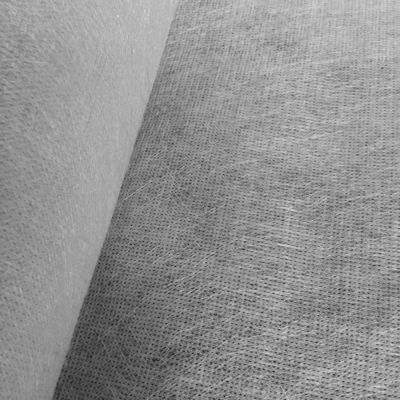

E Glass 380g/M2 With 266mm Width, Usually Made For Filament Winding Process In FRP Pipe

fiberglass stitch mat 300g,380g,450g,600g compatiable with unsaturated resin and other resin for winding pipe, tank

Introduction:

Fiberglass stitched mat is a felt with unidirectional fiberglass strand chopped into certain length and evenly spread in coil structure.

And it's non woven style.



Specifications:

Product NO. Glass Type

Overall Weight

(g/m2)

Chopped Roving

(g/m2)

Width

(mm)

CMK 300 C 300 300 200 - 3200
CMK 380 C 380 380 200 - 3200
CMK 450 C 450 450 200 - 3200
EMK 250 E 250 250 200 - 3200
EMK 300 E 300 300 200 - 3200
EMK 380 E 380 380 200 - 3200
EMK 450 E 450 450 200 - 3200
EMK 600 E 600 600 200 - 3200





Features:

No binder and good resin wet out performance

Good strand dispersion and felt of uniform thickness

Good moldability and easy roll-out

Corrosion&chemical resistant





Application:

Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.

The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
