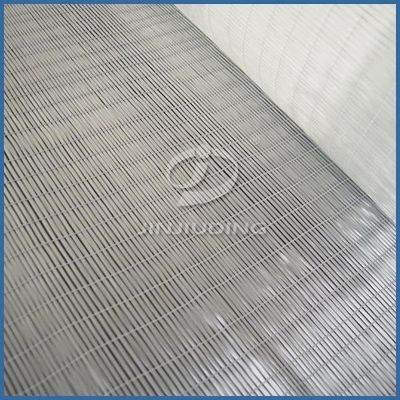

90 Deg Unidirectional Fiberglass Cloth Single Latitudinal 430g For FRP Food Storage Tank
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | ER430 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | It is wound onto a paper tube of ID 76mm, wrapped up with plastic film and packed in woven bag. 48 rolls packed in one pallet, and a 20' container can hold 20 pallets |
| Delivery Time | 8 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 40MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Non-metallic Product | Fiberglass | Color | White |
|---|---|---|---|
| Yarn Type | E Glass | Width | 250mm |
| Texture | 90° | Weave | Latitudinal |
| High Light | 90 Deg Unidirectional Fiberglass Cloth,FRP Single Latitudinal Unidirectional Fiberglass Cloth,430g Unidirectional Fiberglass Fabric |
||
Product Description
90 Deg Unidirectional Fiberglass Cloth Single Latitudinal 430g For FRP Food Storage Tank Of Condiment
Fiberglass Unidirectional Cloth with roving in 90º arrayed and knitted applied in large size pipe making to enhance its transverse tensile strength.
Fiberglass unidirectional fabric is the main arrangements of the roving 90º (transverse) or 0º (longitudinal), and stitched with a coil structure. It can be used to stitch unidirectional layer yarn with chopped strand mat, polyester veil, fiberglass surface tissue, carbon felt etc. into various types of composites fabric to obtain specific performances.
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of a single direction
● Fiber straight arrangement, max usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatible with reinforced unsaturated polyester resin, vinlyester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes winding, pultrusion, RTM, hand lay-up,vacuum infusion molding and RTM etc.
● The typical end-use applications are pipe, storage tank, pultruded profile, FRP boat hull and wind power blade etc.
Specifications:
|
Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt(g/m2) |
Width (mm) |
| ET 227 | 227 | / | 227 | / | / | 150 - 2600 |
| ET 350 | 350 | / | 350 | / | / | 150 - 2600 |
| ET 430 | 430 | / | 430 | / | / | 150 - 2600 |
| ET 550 | 550 | / | 550 | / | / | 150 - 2600 |
| ETP 400 | 400 | / | 360 | / | 40 | 150 - 2600 |
| ETM 450 | 450 | / | 230 | 220 | / | 150 - 2600 |
| ETM 650 | 650 | / | 430 | 220 | / | 150 - 2600 |
| ETM 900 | 900 | / | 680 | 220 | / | 150 - 2600 |
| ETMP 500 | 500 | / | 240 | 220 | 40 | 150 - 2600 |
| EL 400 | 400 | 336 | 64 | / | / | 150 - 2600 |
| EL 800 | 800 | 672 | 128 | / | / | 150 - 2600 |
| ELM 550 | 550 | 336 | / | 224 | / | 150 - 2600 |
| ELM 900 | 900 | 672 | / | 228 | / | 150 - 2600 |
| ELMP 600 | 600 | 336 | / | 224 | 40 | 150 - 2600 |
