FRP Fire Retardant Bridge Fiberglass Stitched Mat CMK 300 Width 1600mm

Place of Origin CHINA
Certification ISO 9000
Model Number CMK300
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material C Glass Fiber Width 1600mm
Roving Type C Glass Character No Binder And Easy Wet-out
Resin Unsaturated Resin And Other Type Application FRP Flat Panel By Machine
High Light

Fire Retardant Bridge Fiberglass Stitched Mat

,

Width 1600mm Fiberglass Stitched Mat

,

CMK 300 Fiberglass

Leave a Message
Product Description

CMK 300 Stitch Knitted Fiberglass Mat, 68kgs Per Roll Of Width 1600mm Could Be Made FRP Fire Retardant Bridge I

fiberglass stitch mat 300g,380g,450g,600g compatiable with unsaturated resin and other resin for winding pipe, tank

The following case is applied in FRP fire-retardant bridge









Introduction:

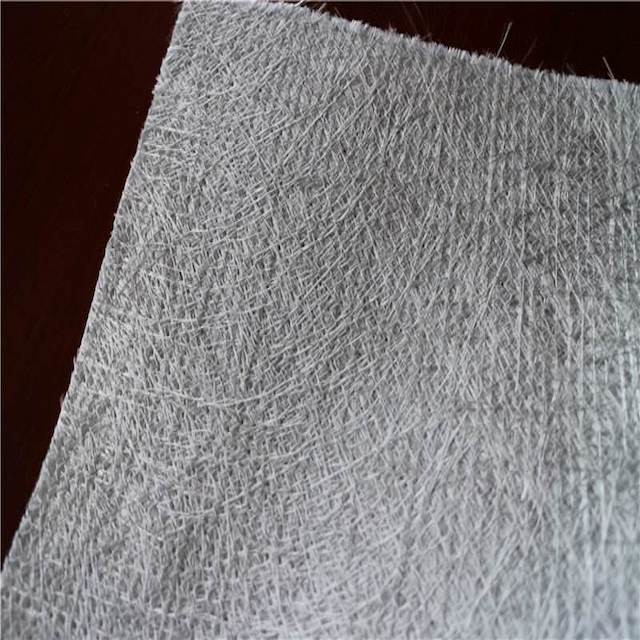

Fiberglass stitched mat is a felt with unidirectional fiberglass strand chopped into certain length and evenly spread in coil structure.



Specifications:

Product NO. Glass Type

Overall Weight

(g/m2)

Chopped Roving

(g/m2)

Width

(mm)

CMK 300 C 300 300 200 - 3200
CMK 380 C 380 380 200 - 3200
CMK 450 C 450 450 200 - 3200
EMK 250 E 250 250 200 - 3200
EMK 300 E 300 300 200 - 3200
EMK 380 E 380 380 200 - 3200
EMK 450 E 450 450 200 - 3200
EMK 600 E 600 600 200 - 3200



Features:

No binder and good resin wet out performance

Good strand dispersion and felt of uniform thickness

Good moldability and easy roll-out

Stitched together with polyester thread resulting in high wet tensile strength





Application:

Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.

The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
