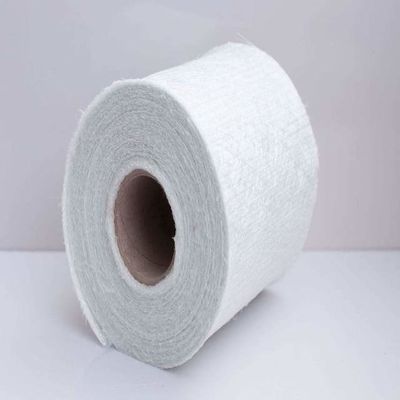

EMK 450 Knitted Fiberglass Stitched Mat for FRP Pressure Pipe Conveying Water Oil
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000 |
| Model Number | EMK450 |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | E Glass Fiber | Width | 200mm |
|---|---|---|---|
| Roving Type | 2400tex | Character | No Binder And Easy Wet-out |
| Resin | Unsaturated Resin And Other Type | Application | Combined With Other Composites To Make Combo Mat |
| High Light | Knitted Fiberglass Stitched Mat,EMK 450 Fiberglass Stitched Mat,Frp Pressure Pipe Stitched Fiberglass Mat |
||
Product Description
EMK 450 Stitch Knitted Fiberglass Mat of width 200mm to be applied in FRP pressure pipe of conveying water and oil by filament winding process
Introduction:
Fiberglass stitched mat is a felt with unidirectional fiberglass strand chopped into certain length and evenly spread in coil structure.
Specifications:
| Product NO. | Glass Type |
Overall Weight (g/m2) |
Chopped Roving (g/m2) |
Width (mm) |
| CMK 300 | C | 300 | 300 | 200 - 3200 |
| CMK 380 | C | 380 | 380 | 200 - 3200 |
| CMK 450 | C | 450 | 450 | 200 - 3200 |
| EMK 250 | E | 250 | 250 | 200 - 3200 |
| EMK 300 | E | 300 | 300 | 200 - 3200 |
| EMK 380 | E | 380 | 380 | 200 - 3200 |
| EMK 450 | E | 450 | 450 | 200 - 3200 |
| EMK 600 | E | 600 | 600 | 200 - 3200 |
Features:
● No binder and good resin wet out performance
● Good strand dispersion and felt of uniform thickness
● Good moldability and easy roll-out
● Stitched together with polyester thread resulting in high wet tensile strength
Application:
● Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.
● The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
