30mm Wide Strips Stitch Knitted Mat As Panel Frame Stand By FRP Pultrusion

Place of Origin CHINA
Certification ISO 9000
Model Number EMK300-30mm
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material E Glass Fiber Width 30mm
Roving Type E Glass Character No Binder And Easy Wet-out
Resin Unsaturated Resin And Other Type Application PV Panel Frame And Stand
Specification 300g/m2
High Light

30mm Wide Strips Stitch Knitted Mat

,

Stitch Knitted Mat Panel Frame

,

FRP Pultrusion Fiberglass Stitched Mat

Leave a Message
Product Description

30mm wide strips of stitch knitted mat to made as panel frame and stand by FRP pultrusion in solar power system

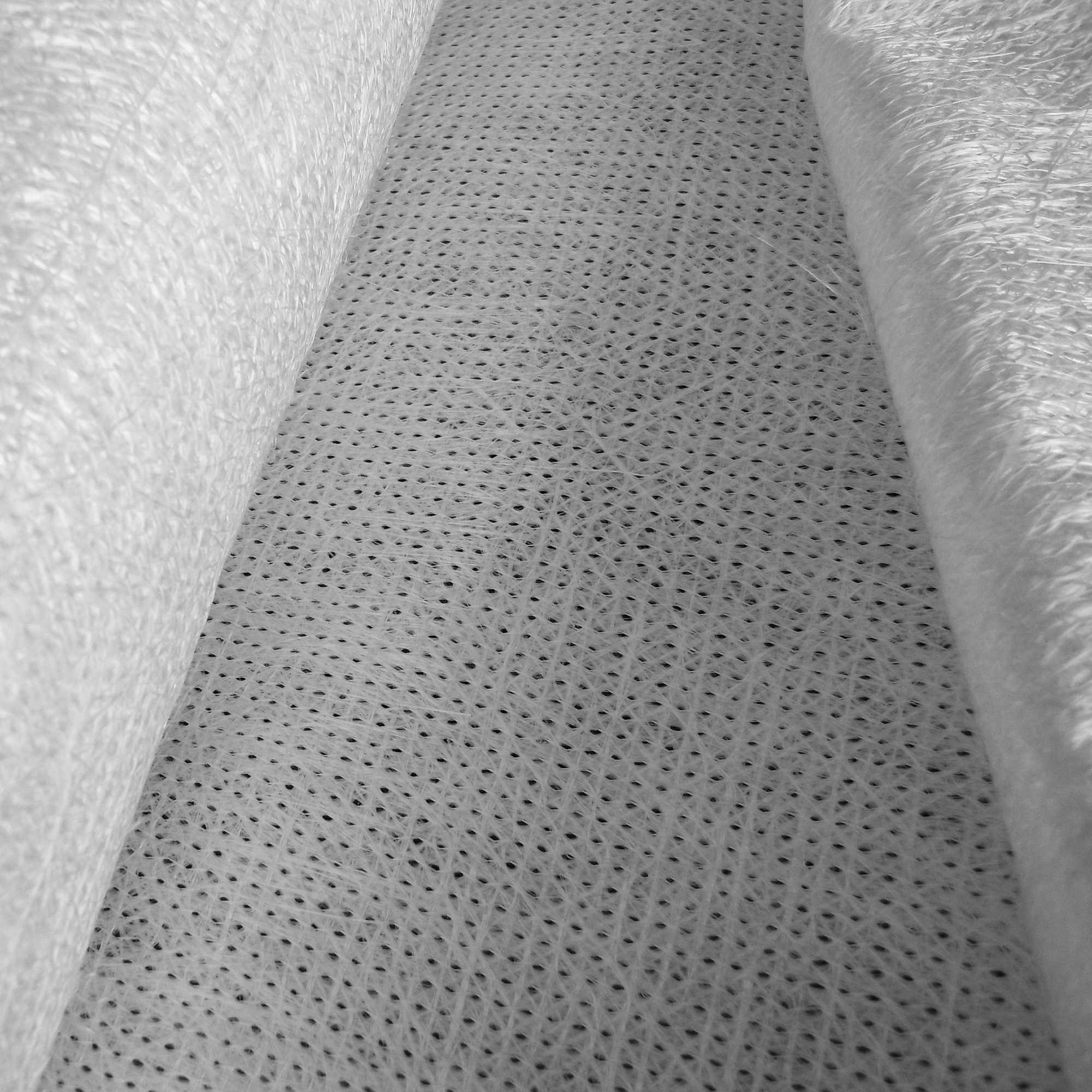

Stitched mat is made of chopped fiberglass strands randomly dispersed and laid on the forming belt,stitched together by a polyester yarn.



fiberglass stitch mat 300g,380g,450g,600g compatiable with unsaturated resin and other resin for winding pipe and FRP pultrusion process



  • High Quality
  • Uniform in distribution
  • Good mat integrity, Easy cutting
  • Fast and consistent wet-out speed in resin and rapid air lease.
  • Good in remolding property.

30mm Wide Strips Stitch Knitted Mat As Panel Frame Stand By FRP Pultrusion 0



Specifications:

Product NO. Glass Type

Overall Weight

(g/m2)

Chopped Roving

(g/m2)

Width

(mm)

CMK 300 C 300 300 200 - 3200
CMK 380 C 380 380 200 - 3200
CMK 450 C 450 450 200 - 3200
EMK 250 E 250 250 200 - 3200
EMK 300 E 300 300 200 - 3200
EMK 380 E 380 380 200 - 3200
EMK 450 E 450 450 200 - 3200
EMK 600 E 600 600 200 - 3200



Features:

No binder and good resin wet out performance

Good strand dispersion and felt of uniform thickness

Good moldability and easy roll-out

Stitched together with polyester thread resulting in high wet tensile strength





Application:

Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.

The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
