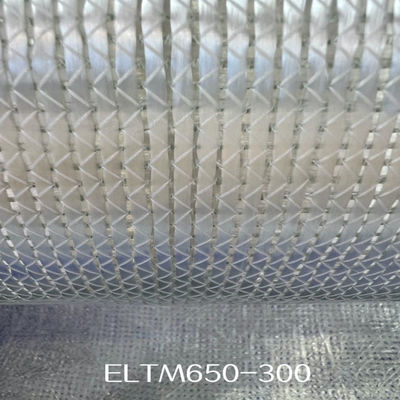

0/90° FRP Products Fiberglass Biaxial Fabric Reinforcement With A Layer Of Chopped Strands

Place of Origin CHINA
Certification ISO 9000
Model Number ELTM650-300
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fiberglass Color White
Texture 0°C And 90° Combination With Chopped Strands Width 300mm
Resin Unsaturated Resin And Other Type Application Transportation Equipment
Weight 650g
High Light

FRP Products Fiberglass Biaxial Fabric

,

Chopped Strands Fiberglass Biaxial Fabric

,

Biaxial Fibreglass Cloth 650g

Leave a Message
Product Description

Strong 0/90°Fiberglass Biaxial Fabric For FRP Products, Reinforcement With A Layer Of Chopped Strands Easy Wet Out Resin



Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of  composites fabric to obtain specific performance.



Specifications:

Product NO.

Overall Weight

(g/m2)

0°Roving

(g/m2)

90°Roving

(g/m2)

Chopped Roving

(g/m2)

Polyester Felt

(g/m2)

Width

(mm)

ELT 450 450 250 200 / / 150 - 2600
ELT 600 600 336 264 / / 150 - 2600
ELT 800 800 420 380 / / 150 - 2600
ELTP 500 500 250 210 / 40 150 - 2600
ELTM 600 600 250 200 150 / 150 - 2600
ELTM 900 900 336 364 200 / 150 - 2600
ELTM 1050 1050 336 414 300 / 150 - 2600
ELTM 1200 1200 420 430 350 / 150 - 2600
ELTMP 640 640 250 200 150 40 150 - 2600





Features:

No binder content, good wet out of resin

Provide mechanical strength of the product i multi direction

Fiber straight arrangemet, max. usage of fiber strength

Interspaces between the fibers are small, effectively improve the impact resistance of products





Application:

Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
