Sanwich Fracture Glass Biaxial Fabric , PP Core Layer And Chopped Roving For Fillling
| Place of Origin | CHINA |
|---|---|
| Certification | ISO |
| Model Number | ELTPM600/180/150 |
| Minimum Order Quantity | 500kgs |
| Price | USD |
| Packaging Details | Wrapped up with plastic film first and then packed in woven bag. FInally palletized. |
| Delivery Time | 7 DAYS |
| Supply Ability | 50MT A MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Fiberglass & PP | Color | White |
|---|---|---|---|
| Specification | 930g/m2 | Width | 200~2600mm |
| Performance | Good Filling | Resin Type | Unsaturated Resin, Vinlyester Resin, Epoxy Resin, Etc. |
| Application | RTM, Vacuum Molding, Injection Molding | PP Thickness | 3~5mm |
| Mat Thickness | 4~5mm | ||
| High Light | Sanwich Fracture Glass Biaxial Fabric,Sanwich Fracture Fiberglass Core Mat,PP Core Glass Biaxial Fabric |
||
Product Description

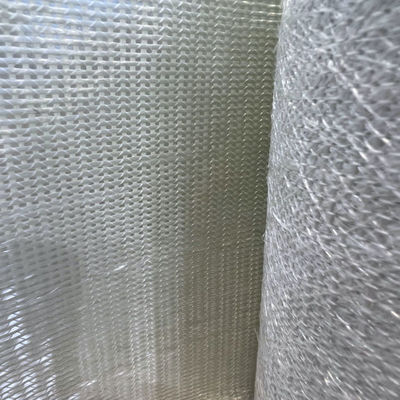

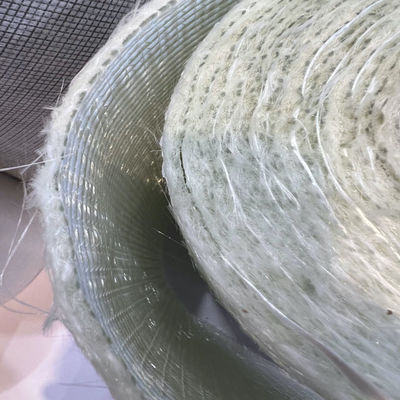

IFiberglass core mat is a fiberglass felt made by stacking multiple layers of fiber materials and disposably stitching them together in a polyester coil structure. The middle layer is made of PP non-woven core material, and the upper and lower surfaces generally have chopped strands or biaxial fabric layer.
Product Features
- Sanwich fracture can enhance the strength and thickness of products.
- Good permeability and solidifying fast;
- Good mechanical properties;
- Good covering and filling performance;
- Suitable for products of various thickness;
Specification
| Product NO. |
Overall Weight (g/m2) |
0/90°Biaxial layer (g/m2) |
Chopped roving layer (g/m2) |
PP core layer (g/m2) |
Chopped roving layer (g/m2) |
width (mm) |
| ELTMP600/180/150 | 930 | 600 | / | 180 | 150 | 200~2600 |
| ELTMP600/180/300 | 1080 | 600 | / | 180 | 300 | 200~2600 |
| ELTMP600/180/600 | 1380 | 600 | / | 180 | 600 | 200~2600 |
| ELTMP300/180/300 | 780 | / | 300 | 180 | 300 | 200~2600 |
| ELTMP450/180/450 | 1080 | / | 450 | 180 | 450 | 200~2600 |
| ELTMP600/180/600 | 1380 | / | 600 | 180 | 600 | 200~2600 |
Product Application
- It is compatible with reinforced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
- Forming processes includiing RTM, vacuum molding, compression molding, injection molding and SRIM;
- The typical end-use applications are FRP boat, wind turbine cabin, automotive and train components and flat profiles.
