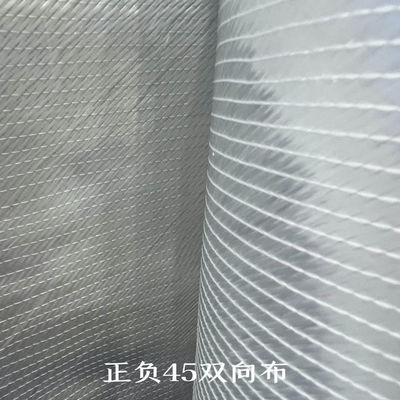

+45/-45° Fiberglass Biaxial Fabric For FRP, Reinforcement With A Layer Of Chopped Strands Easy Wet Out Resin

Place of Origin CHINA
Certification ISO 9000
Model Number ELT650-300
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fiberglass Color White
Texture +45°C And -45° Weaving Width 300mm
Resin Unsaturated Resin And Other Type Application Transportation Equipment
Weight 650g
High Light

FRP Fiberglass Biaxial Fabric

,

Chopped Strand Fiberglass Biaxial Fabric

Leave a Message
Product Description

Strong +45/-45°Fiberglass Biaxial Fabric For FRP, Reinforcement With A Layer Of Chopped Strands Easy Wet Out Resin



Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of  composites fabric to obtain specific performance.







Features:

No binder content, good wet out of resin

Provide mechanical strength of the product i multi direction

Fiber straight arrangemet, max. usage of fiber strength

Interspaces between the fibers are small, effectively improve the impact resistance of products





Application:

Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
