32 oz x 11inch e glass. This knit fiberglass fabric features yarns running in the 0 and 90 degree directions.

Place of Origin CHINA
Certification ISO 9000
Model Number ELTM900-300
Minimum Order Quantity 500kgs
Price negotiatable
Packaging Details The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT
Delivery Time 7 DAYS
Payment Terms T/T, L/C
Supply Ability 20MT A WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material E Glass Direct Roving Color White
Texture 90° Combination Width 300mm
Resin Unsaturated Resin And Other Type Application Transportation Equipment
Weight 900g
Leave a Message
Product Description

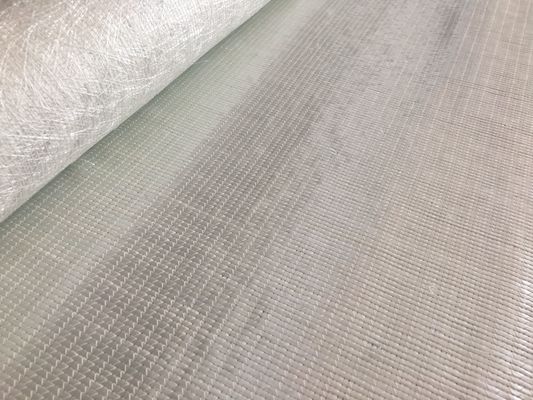

32 oz x 11inch e glass. This knit fiberglass fabric features yarns running in the 0 and 90 degree directions.



Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of  composites fabric to obtain specific performance.

32 oz x 11inch e glass. This knit fiberglass fabric features yarns running in the 0 and 90 degree directions. 0



Specifications:

Product NO.

Overall Weight

(g/m2)

0°Roving

(g/m2)

90°Roving

(g/m2)

Chopped Roving

(g/m2)

Polyester Felt

(g/m2)

Width

(mm)

ELT 450 450 250 200 / / 150 - 2600
ELT 600 600 336 264 / / 150 - 2600
ELT 800 800 420 380 / / 150 - 2600
ELTP 500 500 250 210 / 40 150 - 2600
ELTM 600 600 250 200 150 / 150 - 2600
ELTM 900 900 336 364 200 / 150 - 2600
ELTM 1050 1050 336 414 300 / 150 - 2600
ELTM 1200 1200 420 430 350 / 150 - 2600
ELTMP 640 640 250 200 150 40 150 - 2600





Features:

No binder content, good wet out of resin

Provide mechanical strength of the product i multi direction

Fiber straight arrangemet, max. usage of fiber strength

Interspaces between the fibers are small, effectively improve the impact resistance of products





Application:

Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
